The QinetiQ Banshee is a family of unmanned aerial vehicles (UAVs) developed by the British defense company QinetiQ. Initially designed as target drones for military training, the Banshee series has evolved to include various models with advanced capabilities. These drones are used globally for simulating aerial threats, testing defense systems, and conducting reconnaissance missions.
Design and Development
Early Models
The original Banshee drones were developed in the 1980s by Target Technology Ltd., which later became part of QinetiQ. These early models featured a tailless delta wing design and were constructed using composite materials like Kevlar and glass-reinforced plastic. Powered by small piston engines, they were primarily used as target drones for missile systems.
Propeller Versions
The Banshee Whirlwind is a notable propeller-driven variant. It uses a rotary engine and can fly for up to 90 minutes. This model is equipped with a parachute recovery system and is used for various training scenarios.
Jet-Powered Variants
Banshee Jet 40 and Jet 40+
Introduced in 2010, the Banshee Jet 40 features a single jet engine with 40 kg of thrust. The Jet 40+ is an improved version with enhanced performance and is still in use as of 2024.
Banshee Jet 80 and Jet 80+
The Banshee Jet 80, launched in 2014, is a twin-jet engine drone capable of high speeds and realistic infrared signatures. The Jet 80+ variant offers improved endurance, range, and modular payload options. It can fly at speeds up to 400 knots and has an operating range exceeding 100 km.
Banshee Next Generation (NG)
Unveiled in 2019, the Banshee NG is a twin gas-turbine engine drone capable of speeds over 900 km/h. It features a larger airframe, increased maneuverability up to 9G, and a lower radar cross-section. The NG can carry multiple sophisticated payloads, including radar jammers and decoy dispensing pods.
Operational History
Global Deployment
The Banshee drones have been used by over 40 countries for military training and defense system testing. They have been employed to simulate various threats, including missiles and enemy aircraft, allowing armed forces to test and improve their defense capabilities.
Royal Navy Integration

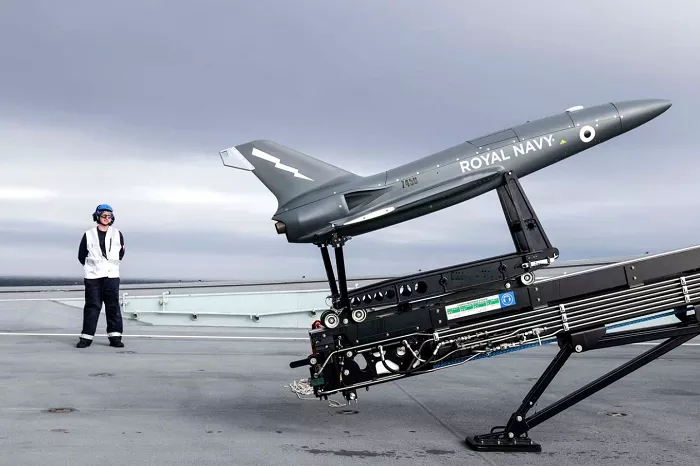

The Royal Navy has incorporated Banshee drones into its training programs. In 2021, the HMS Prince of Wales aircraft carrier launched Banshee Jet 80+ drones to simulate aerial threats. This integration helps train personnel in defending against fast jets and missiles.
Use in Ukraine
In 2023, the UK supplied Banshee Jet 80+ drones to Ukraine. These drones were adapted for use as long-range kamikaze UAVs, capable of striking targets up to 200 km away. This adaptation demonstrates the versatility of the Banshee platform in modern warfare.
Technical Specifications
- Length: Approximately 3 meters
- Weight: Around 130 kg
- Speed: Up to 400 knots (approximately 460 mph)
- Endurance: Up to 45 minutes
- Range: Over 100 km
- Altitude: Capable of flying up to 25,000 feet
- Payload Capacity: Up to 25 kg, depending on the model
Applications
- Target Simulation: Used to mimic enemy aircraft or missiles for training and testing defense systems.
- Reconnaissance: Equipped with sensors for surveillance missions.
- Electronic Warfare: Can carry jammers and decoys to disrupt enemy systems.
- Combat Missions: Adapted for use as kamikaze drones in conflict zones.
Conclusion
The QinetiQ Banshee series represents a significant advancement in UAV technology. Its versatility, adaptability, and global deployment underscore its importance in modern military operations. As threats evolve, the Banshee drones continue to provide valuable training and operational capabilities to armed forces worldwide.
