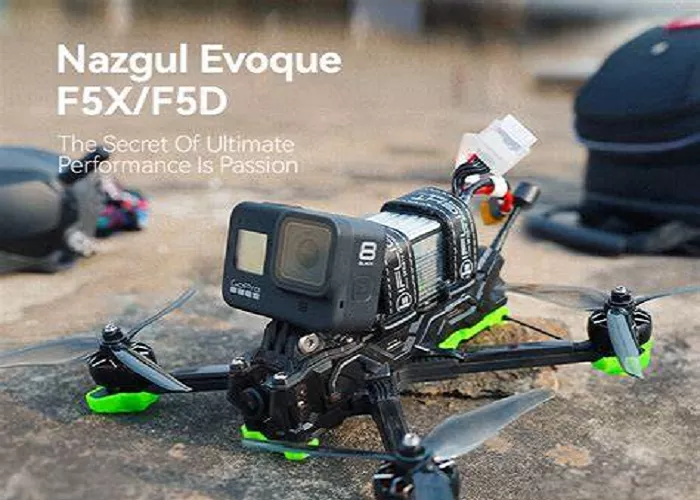

The iFlight Nazgul Evoque F5X is a high-performance 5-inch FPV (First Person View) drone designed for freestyle flying and cinematic recording. Known for its robust build, advanced electronics, and sleek design, it caters to both seasoned pilots and enthusiasts seeking top-tier performance.
Design and Frame
Squashed-X Geometry
The Evoque F5X features a “Squashed X” frame geometry, offering enhanced stability and agility. This design ensures optimal weight distribution, making it ideal for dynamic maneuvers and precise control.
Durable Construction
Constructed with durable carbon fiber and TPU components, the frame provides resilience against crashes. The 6mm thick arms and 3mm bottom plate contribute to the drone’s robustness.
Protective Features
The drone includes 360-degree TPU protective parts and illuminated side panels, enhancing visibility and safeguarding internal components. These features reduce contamination from dirt and grass, preventing potential failures or short circuits.
Flight Controller and ESC
BLITZ Mini F722 Flight Controller
Equipped with the BLITZ Mini F722 flight controller, the Evoque F5X offers precise flight control. The controller features an STM32 F722 MCU and BMI270 gyro, ensuring stable and responsive flight performance.
BLITZ Mini E55 4-IN-1 ESC
The drone utilizes the BLITZ Mini E55 4-in-1 ESC, supporting 2-6S LiPo batteries and delivering up to 55A continuous current per channel. This setup provides efficient power management and smooth operation.
Motors and Propellers
XING2 2207 Motors
The Evoque F5X is powered by XING2 2207 motors, known for their power and efficiency. These motors feature durable unibell technology, strong titanium alloy shafts, and crash-resistant 7075 aluminum bells. They also incorporate Japanese NSK bearings and N52H curved arc magnets for optimal performance.
Nazgul 5-Inch Propellers
Paired with the XING2 motors are the Nazgul 5-inch propellers, optimized for thrust and responsiveness. These propellers contribute to the drone’s agility and control during flight.
Video Transmission and Camera
DJI O3 Air Unit
The Evoque F5X features the DJI O3 Air Unit, providing low-latency digital transmission. This system offers a video transmission range of up to 10 kilometers under FCC regulations. It ensures clear, smooth real-time views in your goggles, even in environments with interference.
4K Stabilized Video
The DJI O3 Air Unit enables 4K stabilized video recording with a 155° ultra-wide-angle lens. This setup delivers exceptional visuals, making it suitable for both FPV enthusiasts and content creators.
Latency and Bitrate
- With DJI FPV Goggles V2:
- 810p/120fps: Latency <28 ms
- 810p/60fps: Latency <40 ms
- With DJI Goggles 2:
- 1080p/100fps: Latency ~30 ms
- 1080p/60fps: Latency ~40 ms
- Maximum Video Transmission Bitrate: 50 Mbps
Battery and Power Management
Anti-Spark XT60 Connector
The Evoque F5X includes a secured battery plug with an anti-spark filter. This feature prevents sudden voltage spikes when connecting the battery, extending the lifespan of the XT60 connectors and protecting the drone’s electronics from damage.
Power Input
The drone supports a power input range of 7.4-26.4 V, accommodating various battery configurations for different flight requirements.
Cooling System
Custom CNC Heatsink
To manage the heat generated by the DJI O3 Air Unit, the Evoque F5X incorporates a specially designed CNC heatsink. This component ensures efficient heat dissipation, maintaining optimal performance even during high-power operations.
GPS and Navigation
Optional GPS Module
The Evoque F5X supports an optional GPS module, compatible with GPS, Galileo, SBAS, QZSS, and Glonass systems. This feature enhances navigation capabilities and enables functionalities like Return-to-Home.
Performance Specifications
- Weight: Approximately 445g without battery; around 610g with battery
- Dimensions: 180×180×80 mm
- Diagonal Distance: 225 mm
- Maximum Speed: Up to 190 km/h in manual mode
- Maximum Takeoff Altitude: 5000 m
- Maximum Hover Time: Approximately 8 minutes
- Maximum Flight Distance: 5 km
- Maximum Wind Resistance: Level 7 (up to 100 km/h)
- Operating Temperature: -10° to 40° C (14° to 104° F)
Setup and Compatibility
The Evoque F5X is available in both BNF (Bind-N-Fly) and PNP (Plug-N-Play) configurations. It supports various receivers, including ELRS, Crossfire, and FrSky, allowing pilots to choose their preferred control system.
Ideal Use Cases
- Freestyle Flying: Its agility and power make it perfect for acrobatic maneuvers.
- Cinematic Recording: The DJI O3 Air Unit provides high-quality video capture for content creators.
- Racing: Responsive controls and high-speed capabilities suit competitive racing scenarios.
Firmware Updates and Tuning
- Betaflight Support: The Evoque F5X runs Betaflight firmware, which can be updated regularly for performance improvements, bug fixes, and new features.
- iFlight Presets: iFlight provides recommended PID tuning presets and factory settings, so pilots can achieve peak performance right out of the box.
- Custom Tuning: Advanced users can fine-tune parameters like rates, filters, and PIDs to match personal flying styles or specific cinematic needs.
Easy-to-Replace Parts
- Modular Design: Arms, motors, and TPU parts are modular, meaning they’re easy to replace without dismantling the whole frame.
- Spare Availability: iFlight sells all replacement parts on its website, including carbon plates, screws, LEDs, antennas, and camera mounts.
Flight Experience and Handling
Beginner Friendliness
- Stabilized Modes: Pilots can use Angle or Horizon modes for smoother control while learning to fly.
- Custom Flight Profiles: The F722 flight controller allows custom flight modes that can be configured through Betaflight Configurator.
- GPS Rescue: With a GPS module installed, pilots can configure “rescue mode,” which returns the drone to home if signal is lost.
Acro Performance
- Snap Rolls and Flips: The stiff frame and responsive ESCs make for clean, snappy acrobatics.
- High-Speed Control: Even at top speed, the drone remains responsive, with minimal prop wash or wobble.
Cinematic Smoothness
- Digital Stabilization: The DJI O3 camera system includes built-in RockSteady stabilization, creating buttery footage even in windy conditions.
- Soft Mounting: TPU camera mounts reduce vibrations for clearer video capture.
- Long Lines: With powerful motors and stable control, the F5X is ideal for long cinematic shots through trees, structures, and obstacles.
Accessories and Optional Upgrades
GPS Module
- Function: Enables Return-to-Home and Lost Drone Recovery.
- Models Supported: BN-220, M80Q, and other mini GPS units with UART support.
Action Camera Mount
- Compatibility: Supports naked GoPro, Insta360 GO, or DJI Action2.
- TPU Mounts: Available in various angles (10°, 20°, 30°) for forward-facing filming.
LED Lighting
- Side Panel LEDs: Provide nighttime visibility and style.
- Tail LEDs: Indicate battery status or flight modes (can be programmed in Betaflight).
Battery Recommendations
- 4S Batteries: Lightweight setup for more agile freestyle.
- 6S Batteries: For extended power and longer flight times; preferred for cinematic work.
- Capacity: Common sizes include 1300mAh (freestyle) and 1500–1800mAh (cinematics).
Comparisons to Similar Drones
| Drone Model | Frame Size | Video System | Weight (No Battery) | Notable Feature |
|---|---|---|---|---|
| Nazgul Evoque F5X | 5-inch | DJI O3 | 445g | Full protection + 4K video |
| GEPRC Mark5 | 5-inch | DJI Air Unit | 430g | Cinematic design with GoPro mount |
| EMAX Hawk Pro | 5-inch | Analog | 400g | Budget-friendly FPV racing |
| Diatone Taycan | 3-inch Cinewhoop | DJI Vista | 300g | Indoor cinematic drone |
Who Should Buy the iFlight Nazgul Evoque F5X?
Ideal For:
- Intermediate to Advanced FPV Pilots
- Freestyle Flyers and Racers
- FPV Videographers and Cinematographers
- Content Creators Needing 4K Aerial Footage
Not Ideal For:
- Beginners Looking for a Lightweight Trainer
- Indoor Flyers or Cinewhoop Enthusiasts
- Those on a Tight Budget
Buying Options and Availability
Where to Buy
- Official iFlight Store
- GetFPV, RaceDayQuads, PyroDrone (U.S.-based)
- Banggood, AliExpress (International Shipping)
Price Range
- BNF w/ DJI O3: $599–$699
- PNP or Analog Version: $399–$499
Shipping Notes
- Make sure to select the correct receiver protocol (ELRS, Crossfire, FrSky, or PNP) at checkout.
- International buyers should account for customs and import taxes.
Conclusion
The iFlight Nazgul Evoque F5X is one of the most complete and thoughtfully designed 5-inch FPV drones on the market.
Its combination of powerful motors, clean wiring, built-in LED lighting, DJI O3 support, and optional GPS functionality makes it suitable for both freestyle adrenaline junkies and cinematic storytellers.
If you’re serious about FPV and want a drone that’s ready to impress out of the box—without sacrificing the ability to upgrade or customize—the Evoque F5X is absolutely worth it.
