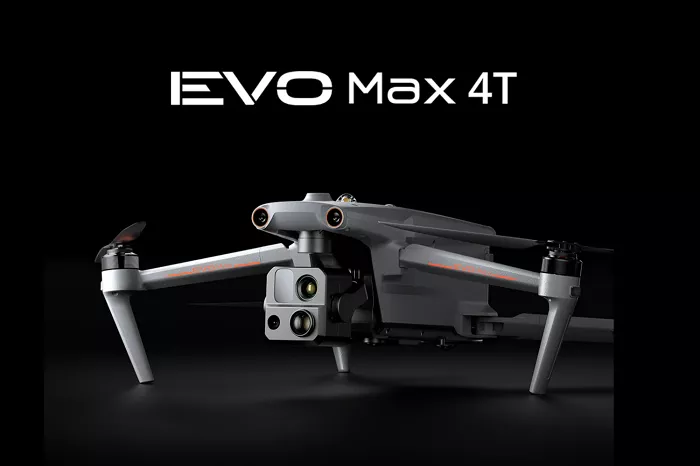

The Autel Robotics EVO Max 4T is a cutting-edge drone designed for professional and industrial applications. Equipped with advanced imaging systems, intelligent flight capabilities, and robust safety features, it stands out as a versatile tool for various missions.
Overview of the EVO Max 4T
Launched in 2023, the EVO Max 4T has garnered attention for its innovative design and functionality. It features a tri-camera system, including a high-resolution wide-angle camera, a powerful zoom lens, and a thermal imaging sensor. This combination allows for detailed visual and thermal data capture, essential for tasks like inspection, search and rescue, and surveillance.
Key Features
Advanced Imaging System
- Wide-Angle Camera: 50MP sensor with a 1/1.28″ CMOS sensor, providing clear and detailed images.
- Zoom Camera: 48MP sensor offering 10x optical zoom and up to 160x digital zoom, enabling close-up views from a distance.
- Thermal Camera: 640×512 resolution thermal sensor, capable of detecting temperature variations, useful for identifying heat sources or insulation issues.
- Laser Rangefinder: Accurately measures distances up to 0.75 miles, aiding in precise targeting and mapping.
Intelligent Flight Capabilities
- Obstacle Avoidance: Equipped with omnidirectional sensors and millimeter-wave radar, the drone can detect and avoid obstacles in all directions, ensuring safe navigation even in complex environments.
- Autonomous Missions: Supports various flight modes, including waypoint navigation, polygon missions, and oblique photography, allowing for automated and repeatable flight paths.
- A-Mesh Networking: Enables drone-to-drone communication, allowing multiple drones to operate in coordination, enhancing mission efficiency and coverage.
Robust Performance
- Flight Time: Up to 42 minutes per battery charge, providing ample time for extended missions.
- Speed and Range: Capable of speeds up to 51.4 mph and a transmission range of up to 12.4 miles, ensuring rapid deployment and broad operational reach.
- Weather Resistance: With an IP43 rating, the drone is protected against dust and light rain, making it suitable for various environmental conditions.
Applications
The EVO Max 4T is designed to meet the needs of various industries:
- Infrastructure Inspection: Its high-resolution cameras and thermal imaging capabilities make it ideal for inspecting power lines, pipelines, and buildings.
- Search and Rescue: The thermal camera can detect heat signatures, aiding in locating missing persons in challenging terrains.
- Public Safety and Law Enforcement: Provides real-time situational awareness during emergencies or surveillance operations.
- Agriculture: Assists in monitoring crop health and irrigation systems through detailed aerial imagery.
Controller and Software
- Smart Controller V3: Features a 7.9″ touchscreen display with 2048 x 1536 resolution, offering clear visuals even in bright sunlight. It includes dual antennas for extended range and better reception.
- Autel Enterprise App: Allows for manual piloting, pre-planned flight paths, and semi-autonomous modes. Users can import KML files to create flight boundaries and execute complex missions.
Specifications
- Weight: Approximately 3.6 lbs (with battery and gimbal).
- Dimensions: Folded: 10.1 x 5.2 x 5.4 inches; Unfolded: 22.7 x 5.9 x 26.0 inches.
- Battery: 8070 mAh LiPo battery, providing up to 42 minutes of flight time.
- Operating Temperature: -4°F to 122°F (-20°C to 50°C), allowing for operation in various climates.
Conclusion
The Autel Robotics EVO Max 4T stands as a powerful and versatile drone, equipped with advanced imaging systems, intelligent flight capabilities, and robust performance features. Its adaptability makes it suitable for a wide range of professional applications, from infrastructure inspection to public safety operations. With its user-friendly interface and reliable performance, the EVO Max 4T is a valuable asset for any organization seeking to enhance their aerial capabilities.
