The MQ-9 Reaper is a sophisticated unmanned aerial vehicle (UAV) developed by General Atomics Aeronautical Systems for the United States Air Force. Renowned for its long endurance, extensive range, and versatile payload capabilities, the MQ-9 Reaper plays a pivotal role in modern military operations. This article delves into the Reaper’s flight range, endurance, and the factors influencing its operational capabilities.
What is MQ-9 Reaper

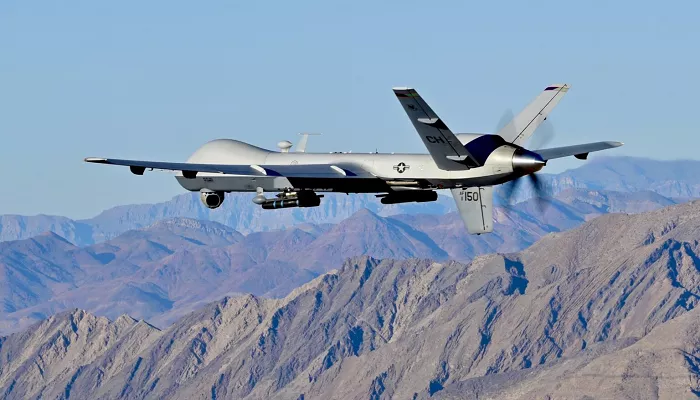

The MQ-9 Reaper is a remotely piloted aircraft designed primarily for intelligence, surveillance, and reconnaissance (ISR) missions, as well as precision strike operations. It boasts a wingspan of 66 feet (20.1 meters) and a length of 36 feet (11 meters), providing a stable platform for its various missions. Powered by a Honeywell TPE331-10GD turboprop engine, the Reaper achieves a maximum speed of 240 knots true airspeed (KTAS) and can operate at altitudes up to 50,000 feet (15,240 meters) .
Dimensions and Structure
- Wingspan: 66 feet (20.1 meters)
- Length: 36 feet (11 meters)
- Height: 12.5 feet (3.8 meters)
- Empty Weight: 4,900 pounds (2,223 kilograms)
- Maximum Takeoff Weight: 10,500 pounds (4,760 kilograms)
Propulsion and Performance
- Engine: Honeywell TPE331-10GD turboprop
- Thrust: 900 shaft horsepower
- Maximum Speed: 240 knots true airspeed (KTAS)
- Cruise Speed: Approximately 230 mph (200 knots)
- Operational Ceiling: Up to 50,000 feet (15,240 meters)
Range and Endurance
Standard Range: 1,150 miles (1,000 nautical miles)
Extended Range (ER) Variant: 1,611 miles (1,400 nautical miles)
Endurance:
- Standard Mission: Approximately 27 hours
- Fully Loaded with Munitions: Approximately 14 hours
- With External Fuel Tanks: Up to 42 hours, depending on configuration and operational conditions
Flight Range and Endurance
Standard Range
Under typical operational conditions, the MQ-9 Reaper has a maximum range of approximately 1,150 miles (1,000 nautical miles). This range allows it to conduct ISR missions over vast areas, providing real-time intelligence to ground forces .
Extended Range (ER) Variant
The Extended Range (ER) variant of the MQ-9 Reaper is equipped with additional fuel capacity, enabling it to achieve a range of up to 1,611 miles (1,400 nautical miles). This enhancement is particularly beneficial for missions requiring prolonged loiter times or operations in remote regions .
Endurance
Endurance refers to the duration a UAV can remain airborne without refueling. The MQ-9 Reaper’s endurance varies based on its payload and mission profile:
- Standard Mission: Approximately 27 hours.
- Fully Loaded with Munitions: Approximately 14 hours .
- With External Fuel Tanks: Up to 42 hours, depending on the configuration and operational conditions .
These endurance capabilities enable the MQ-9 Reaper to conduct continuous surveillance and strike operations over extended periods, enhancing its effectiveness in various mission scenarios.
Factors Influencing Flight Range and Endurance
Several factors can impact the MQ-9 Reaper’s flight range and endurance:
- Payload Weight: Carrying heavier payloads, such as weapons or additional sensors, can reduce both range and endurance due to increased fuel consumption.
- Weather Conditions: Adverse weather, including strong winds or turbulence, can affect fuel efficiency and, consequently, flight duration.
- Operational Altitude: Higher altitudes may offer more favorable wind conditions but can also require more fuel to maintain flight, influencing endurance.
- Flight Speed: Higher speeds increase fuel consumption, thereby reducing the UAV’s range and endurance.
Understanding these factors is crucial for mission planning and ensuring the MQ-9 Reaper operates within its optimal performance parameters.
Strategic Importance of the MQ-9 Reaper’s Range and Endurance
The MQ-9 Reaper’s extended range and endurance capabilities make it an invaluable asset for modern military operations:
- Global Reach: Its ability to operate over vast distances allows for global surveillance and rapid response to emerging threats.
- Persistent Surveillance: Extended loiter times enable continuous monitoring of targets, providing comprehensive intelligence to commanders.
- Operational Flexibility: The Reaper can be deployed in various theaters of operation, from counterterrorism efforts to large-scale combat operations, adapting to diverse mission requirements.
Conclusion
the MQ-9 Reaper’s impressive flight range and endurance are integral to its role as a versatile and effective unmanned aerial system. These capabilities enhance its operational effectiveness, making it a cornerstone of modern military strategy.
