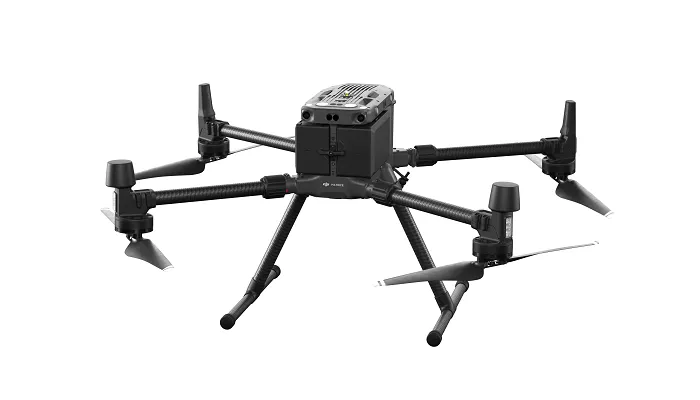

The DJI Matrice 300 RTK (M300 RTK) is a powerful commercial drone designed for professional use. It is known for its long flight time, advanced safety features, and ability to carry multiple cameras and sensors. This drone is used in various industries, including public safety, infrastructure inspection, and environmental monitoring.
Overview of the DJI Matrice 300 RTK
The M300 RTK is DJI’s flagship industrial drone. It combines modern aviation technology with smart features to deliver reliable performance in demanding environments. The drone can fly for up to 55 minutes and carry up to three payloads at once. It is built to operate in harsh conditions, making it suitable for critical missions.
Key Features of the M300 RTK
1. Long Flight Time
The M300 RTK can fly for up to 55 minutes without a payload and around 45 minutes with a standard camera like the Zenmuse H20. This extended flight time allows operators to cover large areas without frequent battery changes.
2. Multiple Payload Support
This drone can carry up to three payloads simultaneously: two underneath and one on top. It supports various configurations, including single downward, dual downward, and upward gimbals. The maximum payload capacity is 2.7 kg.
3. Advanced Obstacle Avoidance
The M300 RTK features a six-directional sensing system with dual-vision and Time-of-Flight (ToF) sensors. These sensors detect obstacles up to 40 meters away, enhancing flight safety even in complex environments.
4. High-Speed Performance
The drone can ascend at speeds over 5 m/s and reach horizontal speeds up to 23 m/s (approximately 82.8 km/h). This speed enables rapid deployment and efficient mission completion.
5. OcuSync Enterprise Transmission
The M300 RTK uses DJI’s OcuSync Enterprise system, providing a transmission range of up to 15 km. It supports triple-channel 1080p video and automatic switching between 2.4 GHz and 5.8 GHz frequencies for stable connections.
6. Dual Control Capability
Two operators can control the drone simultaneously. This feature allows one pilot to manage the flight while the other controls the camera, enhancing operational flexibility.
7. Robust Design
The drone has an IP45 rating, making it resistant to water and dust. It operates in temperatures ranging from -20°C to 50°C and features self-heating batteries for cold environments.
Applications of the DJI Matrice 300 RTK
1. Public Safety and Emergency Response
The M300 RTK is widely used by police, firefighters, and search and rescue teams. It can be equipped with loudspeakers to broadcast messages during emergencies and spotlights for night operations. The drone’s thermal imaging capabilities help locate missing persons or monitor fire hotspots.
2. Infrastructure Inspection
Utility companies use the M300 RTK to inspect power lines, pipelines, and bridges. The drone’s high-resolution cameras and zoom capabilities allow for detailed inspections without the need for manual climbing or scaffolding.
3. Environmental Monitoring
Researchers and environmental agencies deploy the M300 RTK to monitor wildlife, track deforestation, and assess environmental changes. Its ability to cover large areas and capture high-quality data makes it ideal for ecological studies.
4. Agriculture
In agriculture, the drone assists in crop monitoring, irrigation planning, and pest detection. By capturing multispectral images, farmers can make informed decisions to improve yield and reduce resource usage.
Compatible Cameras and Sensors
The M300 RTK supports various DJI payloads, including:
- Zenmuse H20 Series: Combines zoom, wide-angle, and thermal cameras.
- Zenmuse XT2: Offers thermal imaging and 4K visual imaging.
- Zenmuse Z30: Features a 30x optical zoom camera.
- Zenmuse S1 Spotlight: Provides enhanced visibility during night operations.
- Zenmuse V1 Speaker: Broadcasts messages up to 500 meters away.
Smart Features for Efficient Operations
1. AI Spot-Check
The drone uses artificial intelligence to recognize and remember specific objects. This feature ensures consistent framing during repeated inspections, improving data accuracy.
2. Live Mission Recording
Operators can record flight paths, camera angles, and other actions to automate future missions. This capability saves time and ensures consistency across operations.
3. Waypoints 2.0
The M300 RTK allows the creation of up to 65,535 waypoints. Operators can set multiple actions at each waypoint, optimizing flight paths for complex missions.
Maintenance and Safety Features
The drone includes a Health Management System that monitors all systems, logs notifications, and provides troubleshooting guides. It also features redundancy systems, such as dual batteries and sensors, to ensure safe operation even if one component fails.
Conclusion
The DJI Matrice 300 RTK is a versatile and reliable drone designed for professional use. Its advanced features, robust design, and compatibility with various payloads make it suitable for a wide range of applications, from public safety to environmental monitoring. By combining long flight times with smart technologies, the M300 RTK sets a new standard in the commercial drone industry.
